Chosfox X Masro | Geonix Rev.2

Geonix Rev.2 Mechanical Keyboard

Geonix Rev.2 brings a new balance between sharpness and refinement, evolving the original design with smoother geometry and a modern aesthetic.

Main Features

• Aluminum Construction – CNC-milled from premium aluminum for durability and a solid, weighty feel.

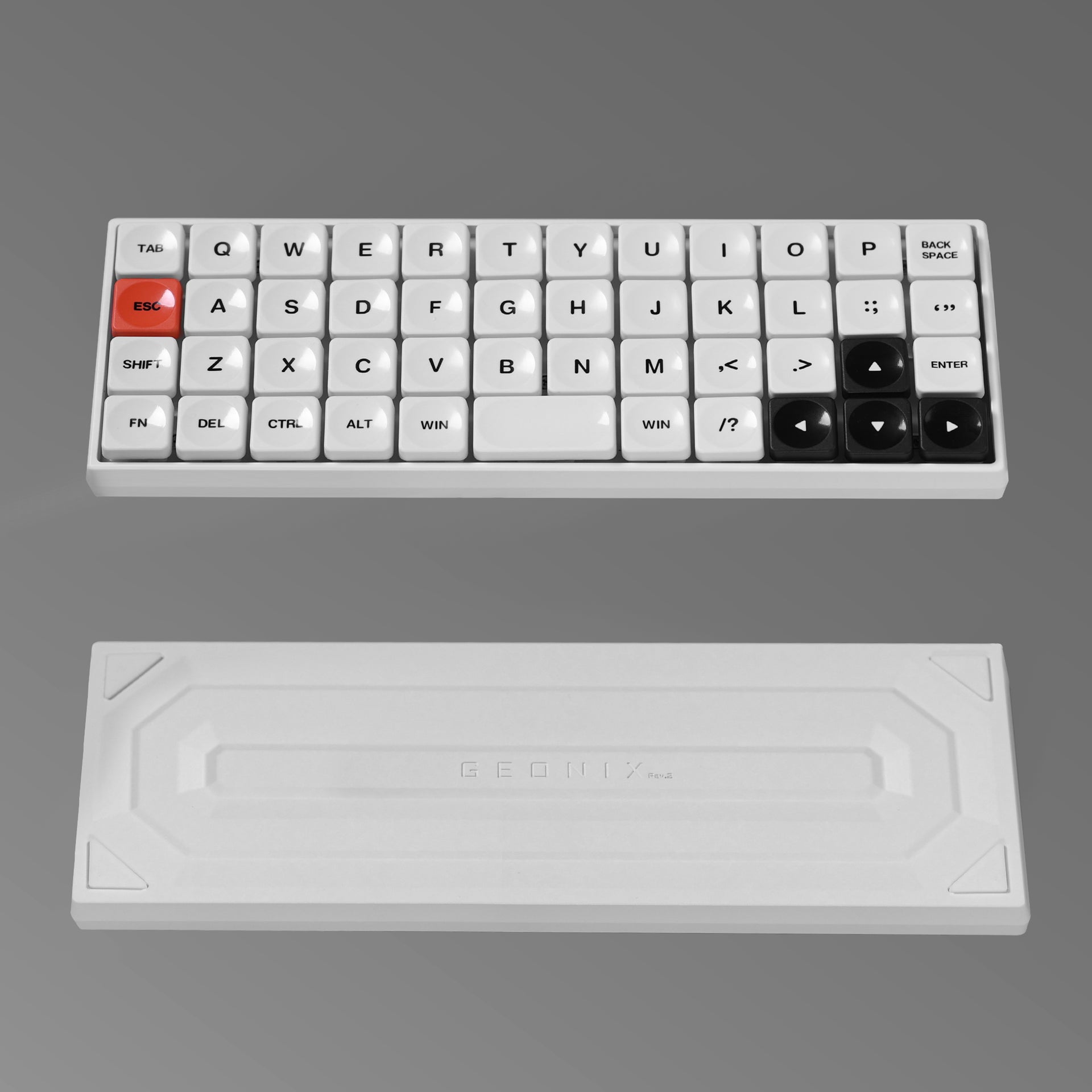

• Redesigned Back Structure – Streamlined surfaces with soft angles and chamfers for a subtle play of light and depth.

Structure

• Programmable PCB – Full QMK / VIA support for complete key remapping. Hotswap sockets for Choc v2 switches.
• Recently, we have discovered that some customers have upgraded to incorrect firmware, which has caused the keyboard to be unusable.
  We suggest that if you do not need these firmware, there is no need to download the RF files.
  If you need to upgrade the receiver, after the receiver upgrade is completed, please unplug it. Never use the upgrade package for the keyboard RF to upgrade the receiver.
  If any of the above-mentioned problems occur, they will not be covered by the after-sales service. If you have any questions, you can contact us in advance.
• Color Choices – Offered in Black, Silver, and White finishes.
• Keyboard Kit Includes – The kit contains the keyboard case, switches (user-selected), fixed LCK keycaps, and a carrying bag. Users are required to assemble the switches and keycaps themselves.

• Battery & Battery Life
  The Geonix Rev.2 is equipped with a 1000mAh battery:

  • With backlight on: up to 7 hours of continuous use

  • With backlight off: up to 40 hours of continuous use

  Note: Continuous use means the keyboard is being used without interruption.

• Case Finish – Aluminum body; Black and Silver versions feature anodized finishes, while the White version uses electrophoresis coating for a smooth, durable surface.

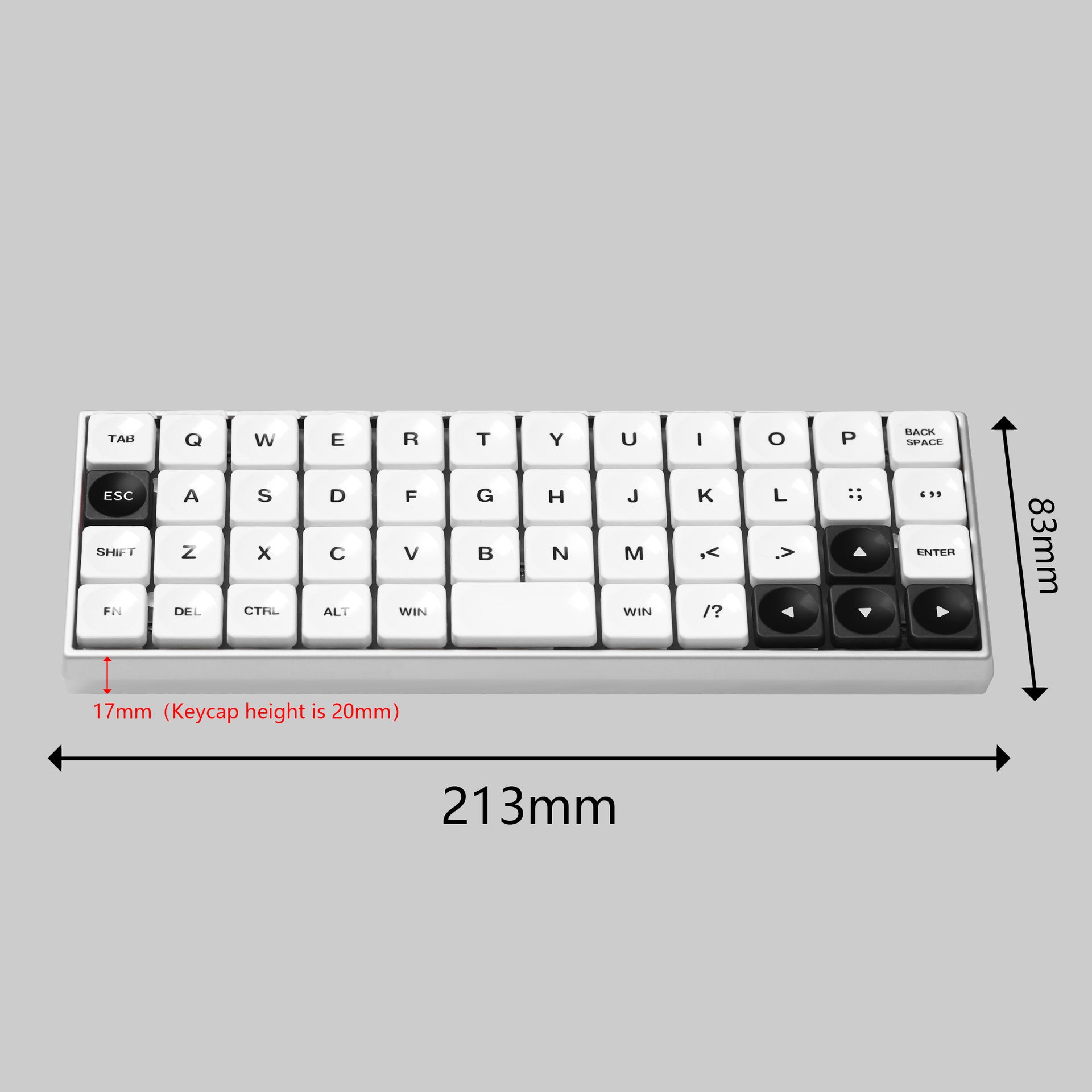

• Layout – The Geonix Rev.2 features a 4×12 ortholinear layout with 47 keys. Please note that the spacebar cannot be split into two 1u keys.
• It uses a tray-mount structure. And the PCB supports Choc v2 switches and Choc v1 switches (but two pins need to be removed).
