Geonix48 / Geonix48 Via Ortholinear Keyboard - Now In Stock!

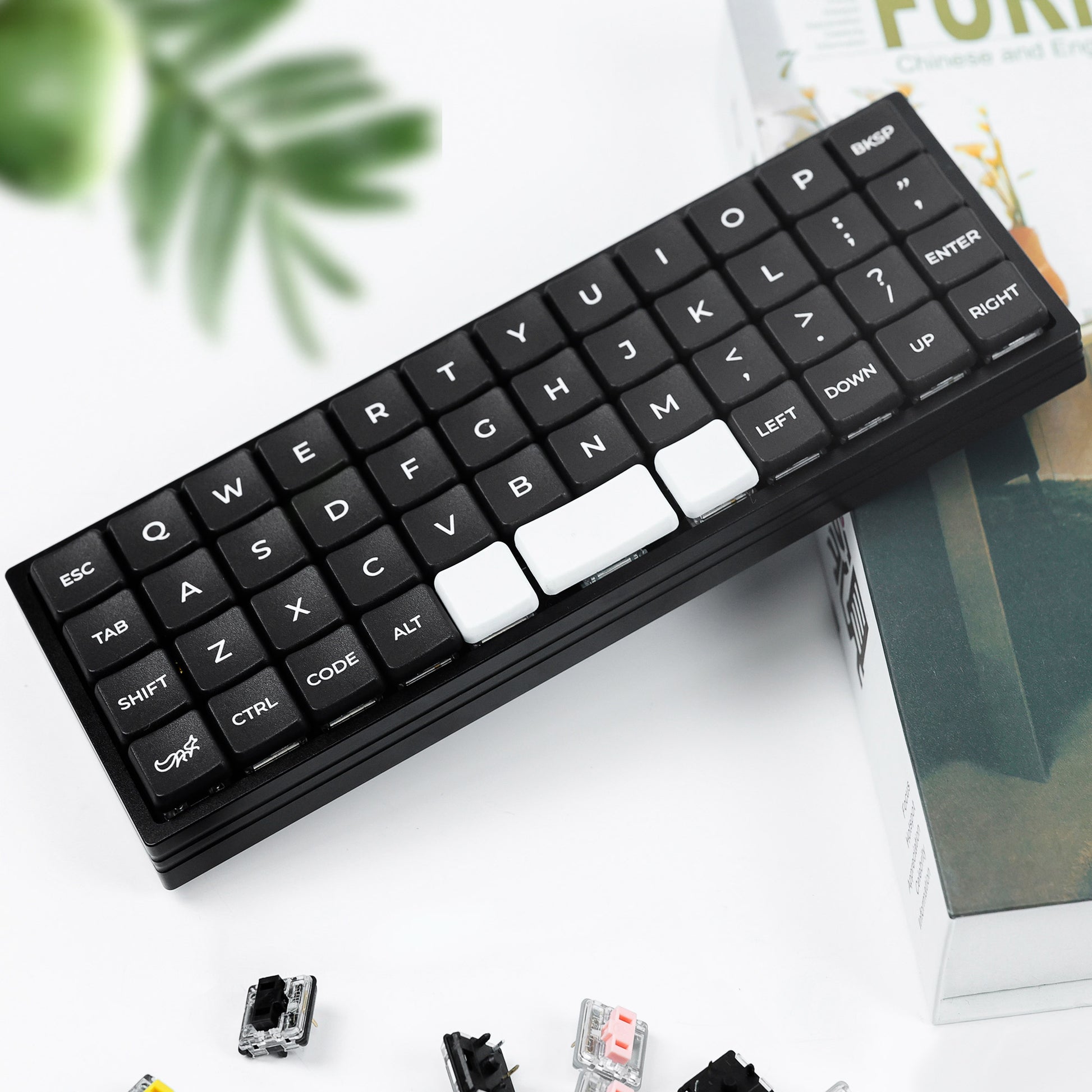

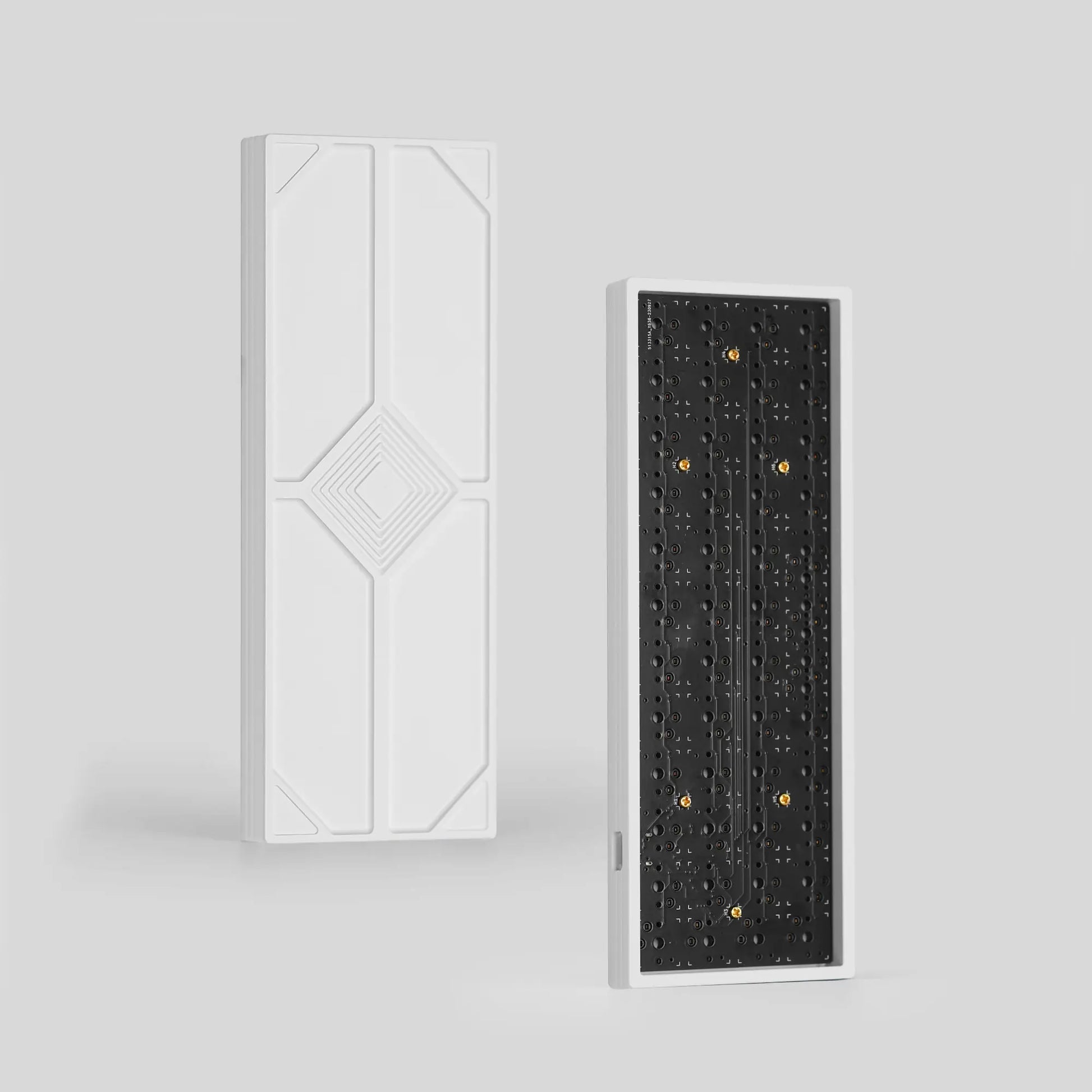

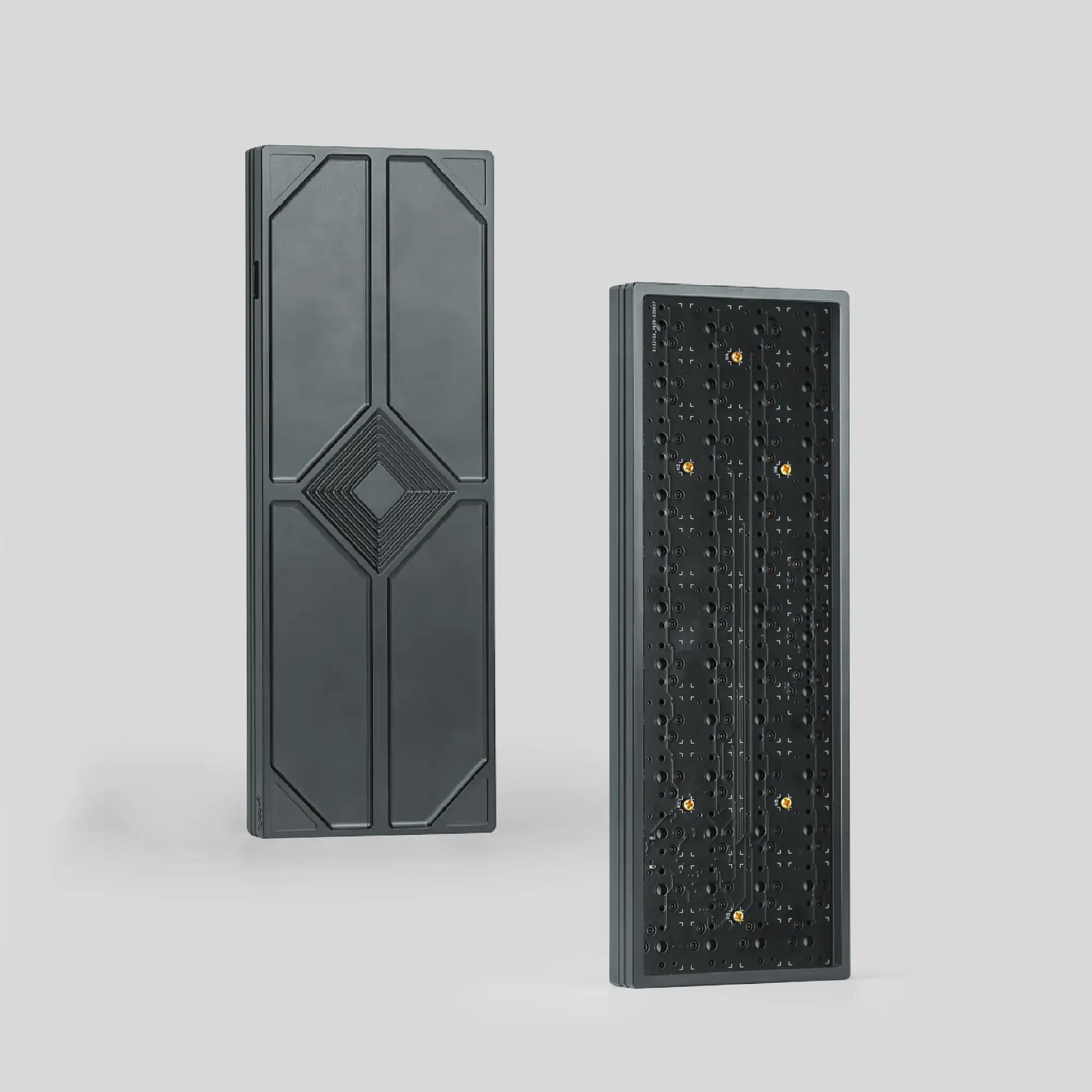

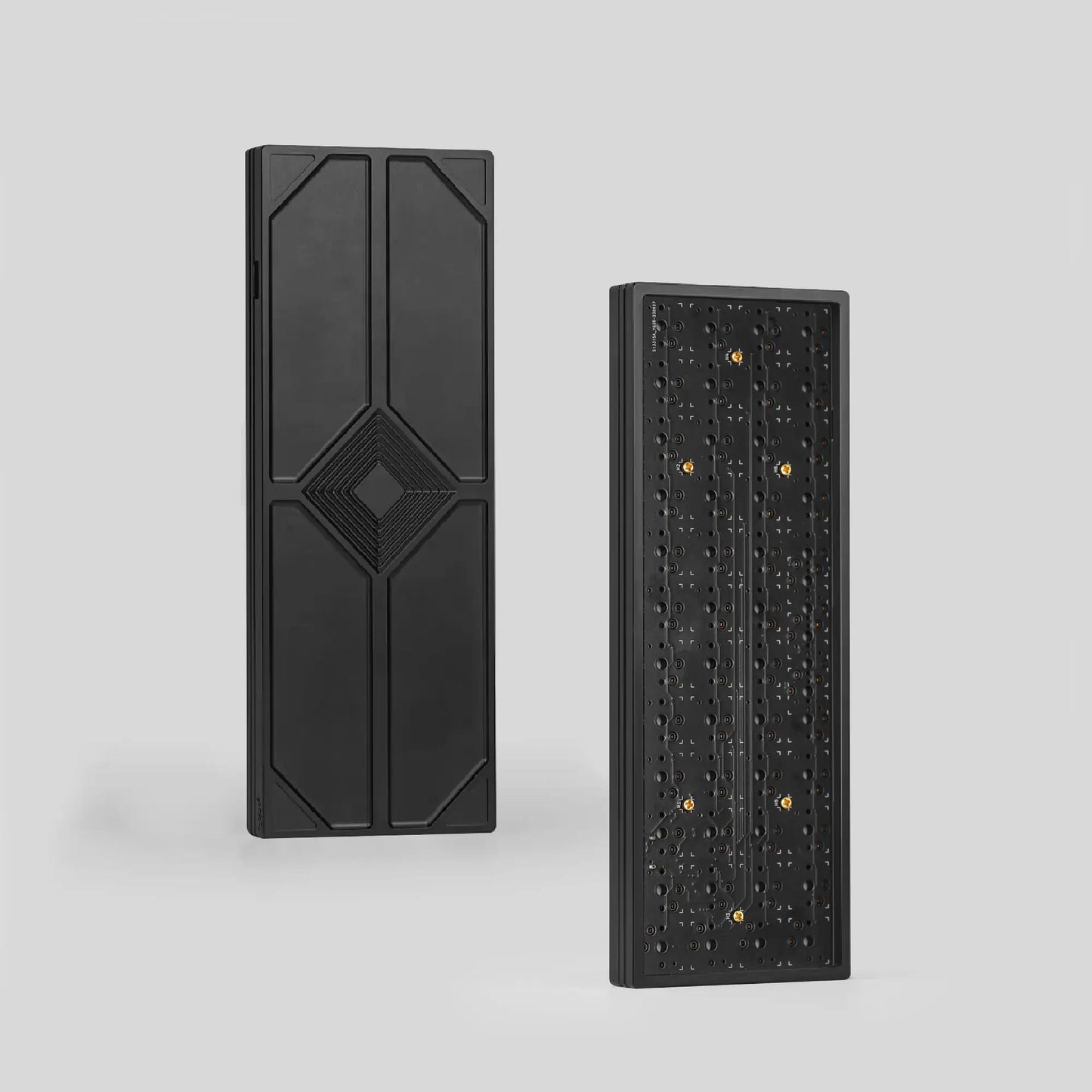

Geonix48 is an ortholinear keyboard that we created in collaboration with Masro

"Geonix" has a modern and futuristic sound, and expresses geometric design and industrial elements.

Geo: From "Geometric" which indicates geometry

nix: As part of "Industrial" or "Technics" which have industrial or technical images

Important:

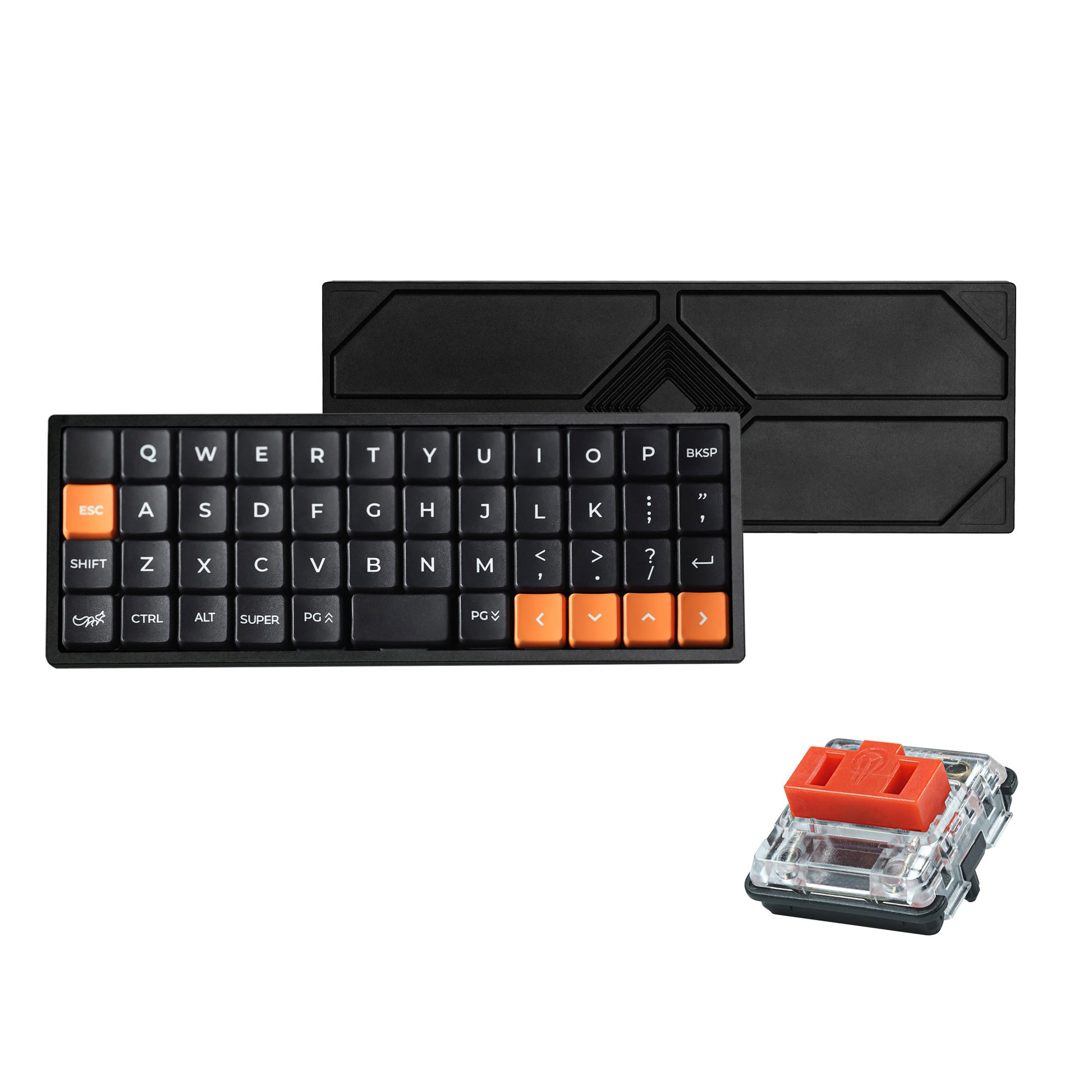

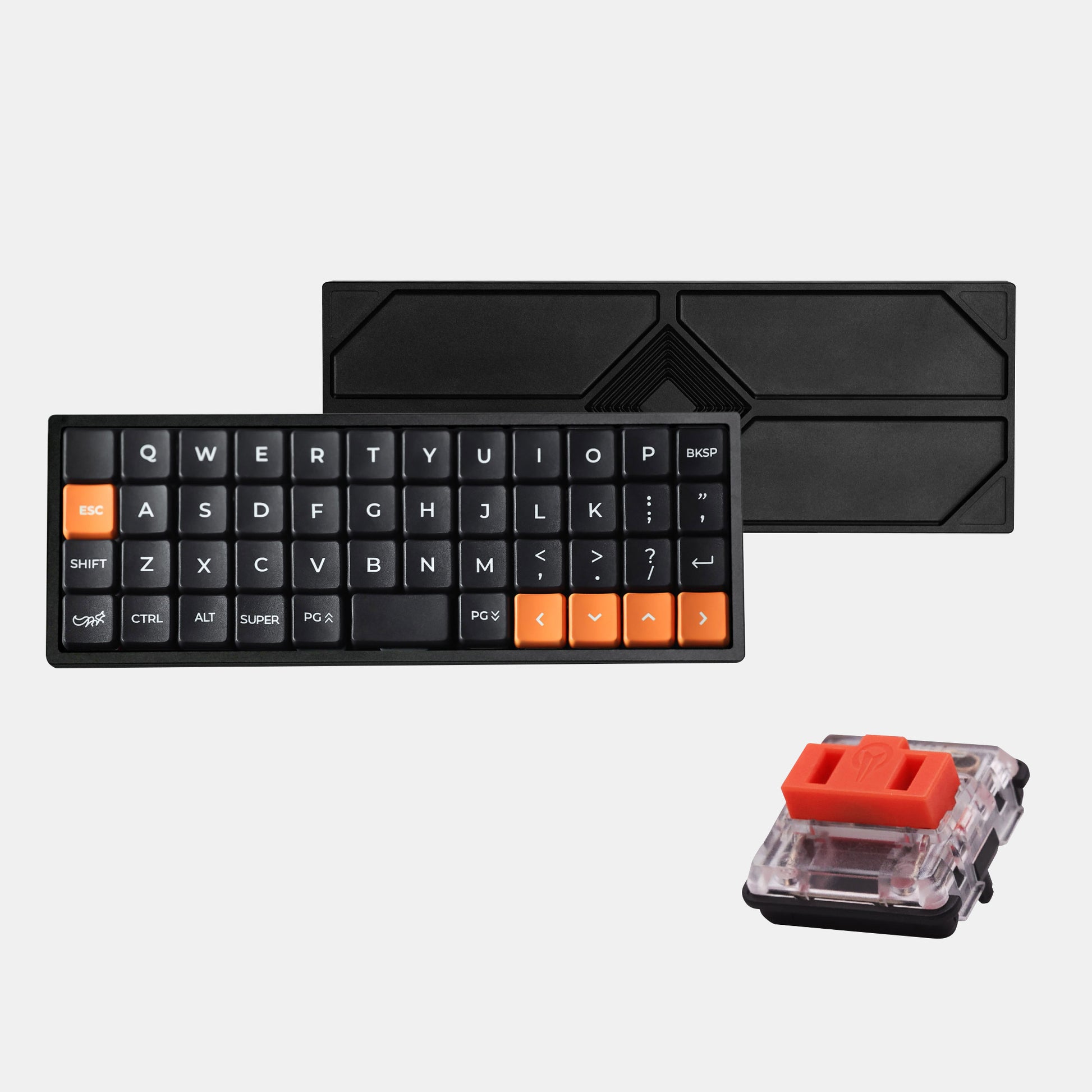

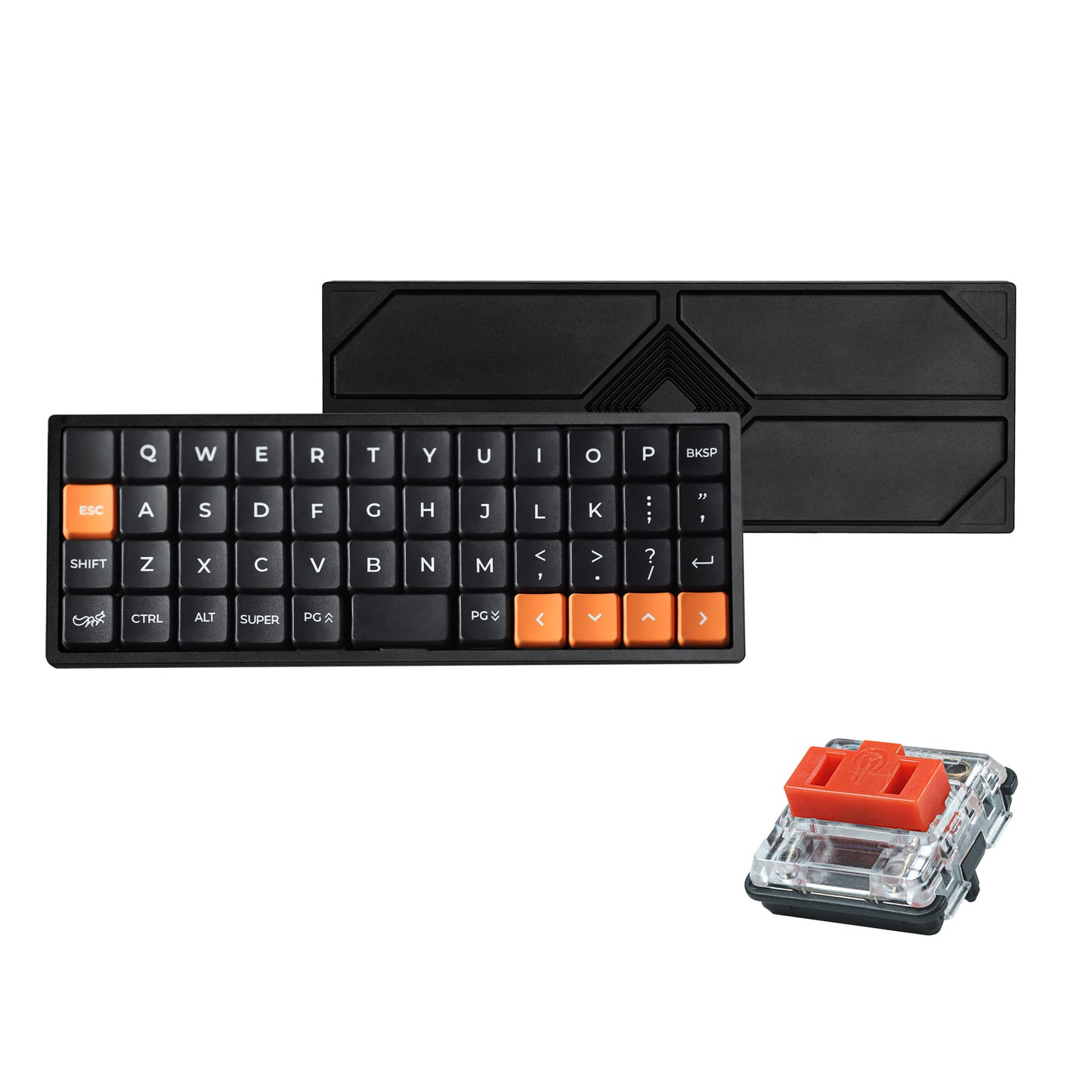

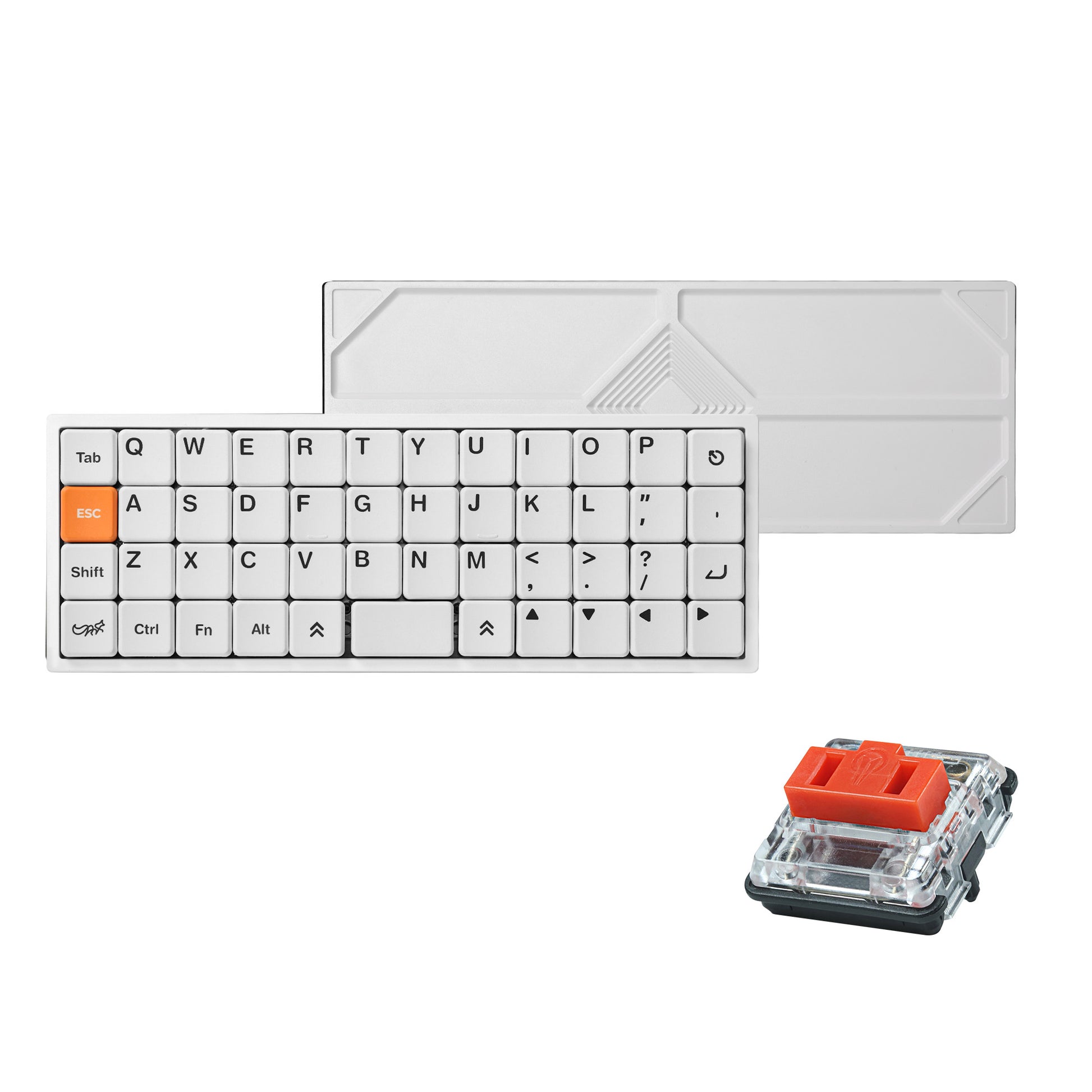

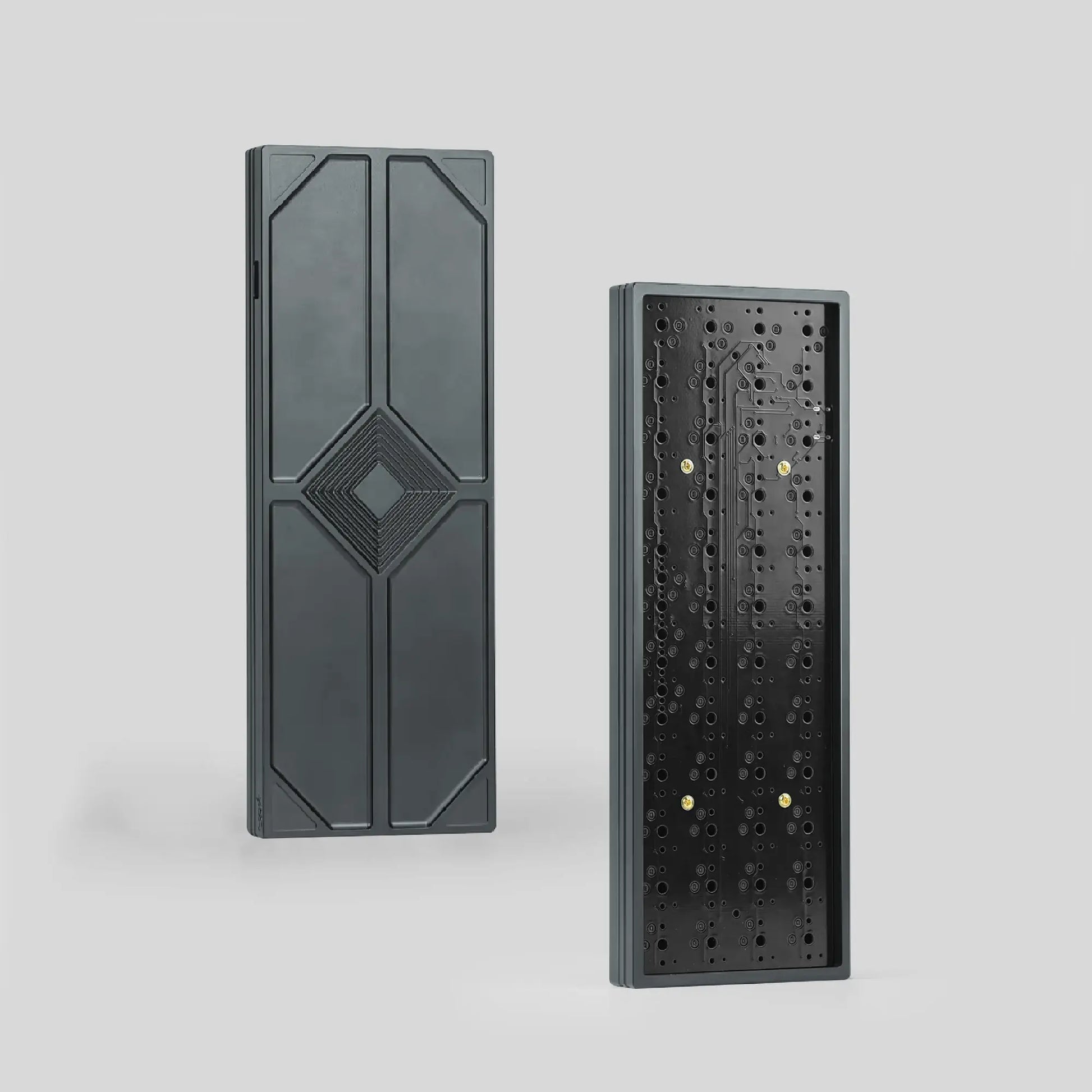

Kit consists of a case and PCB ONLY, switches/keycaps are not included.

ONLY works with Kailh Choc v1 and Chosfox CFX Keycaps.

Firmware:

Geonix48: Supports QMK only — https://github.com/ChrisChrisLoLo/bancouver40/tree/main/firmware
Note: The Geonix48 uses the same QMK firmware as the previous Minipeg48.

Geonix48 Via: Supports both QMK and VIA.
VIA file download: Click here to download

This file can be used to revert to the original qmk/vial：Click here to download

Name	Geonix48 / Geonix48 Via

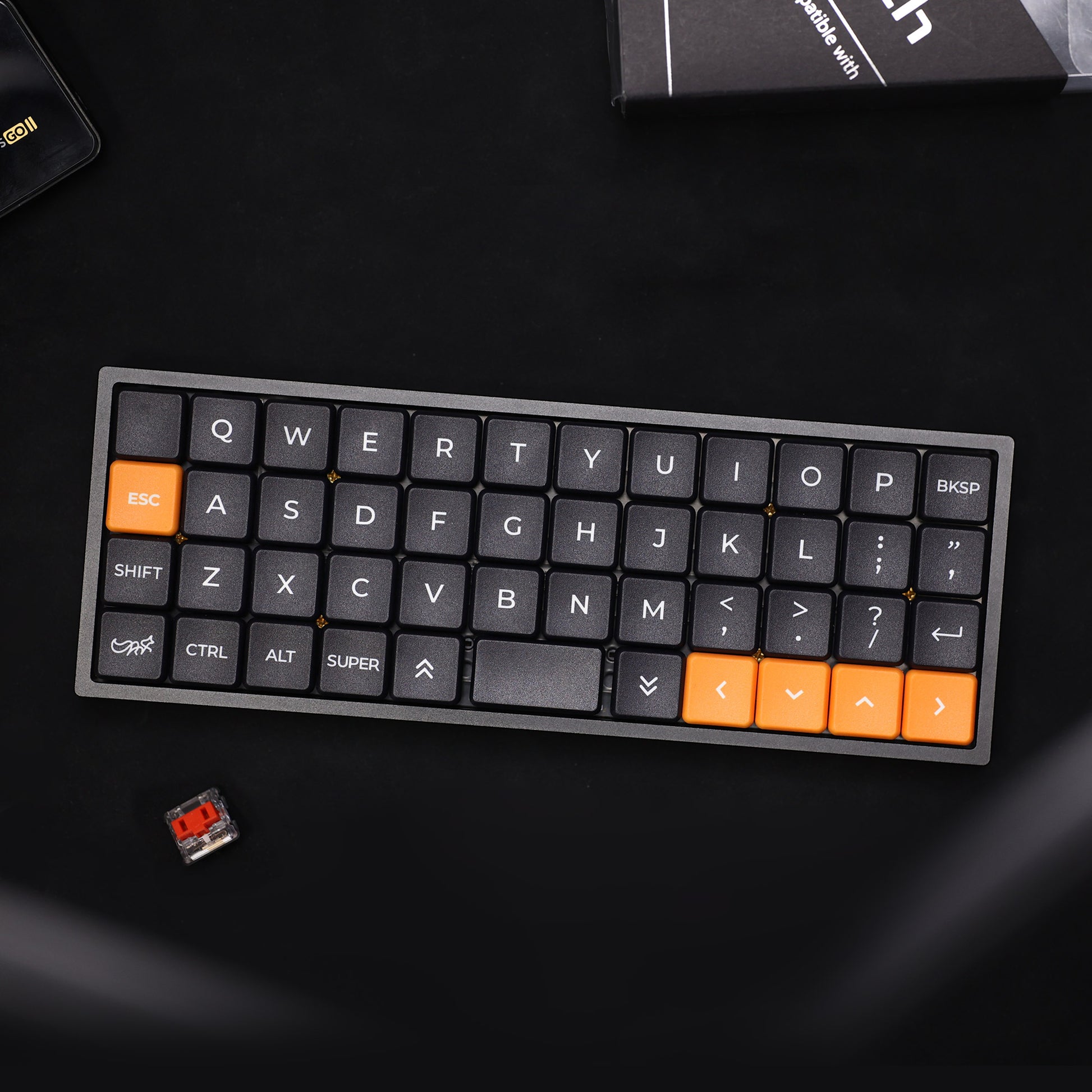

Layout	4x12 Ortholinear

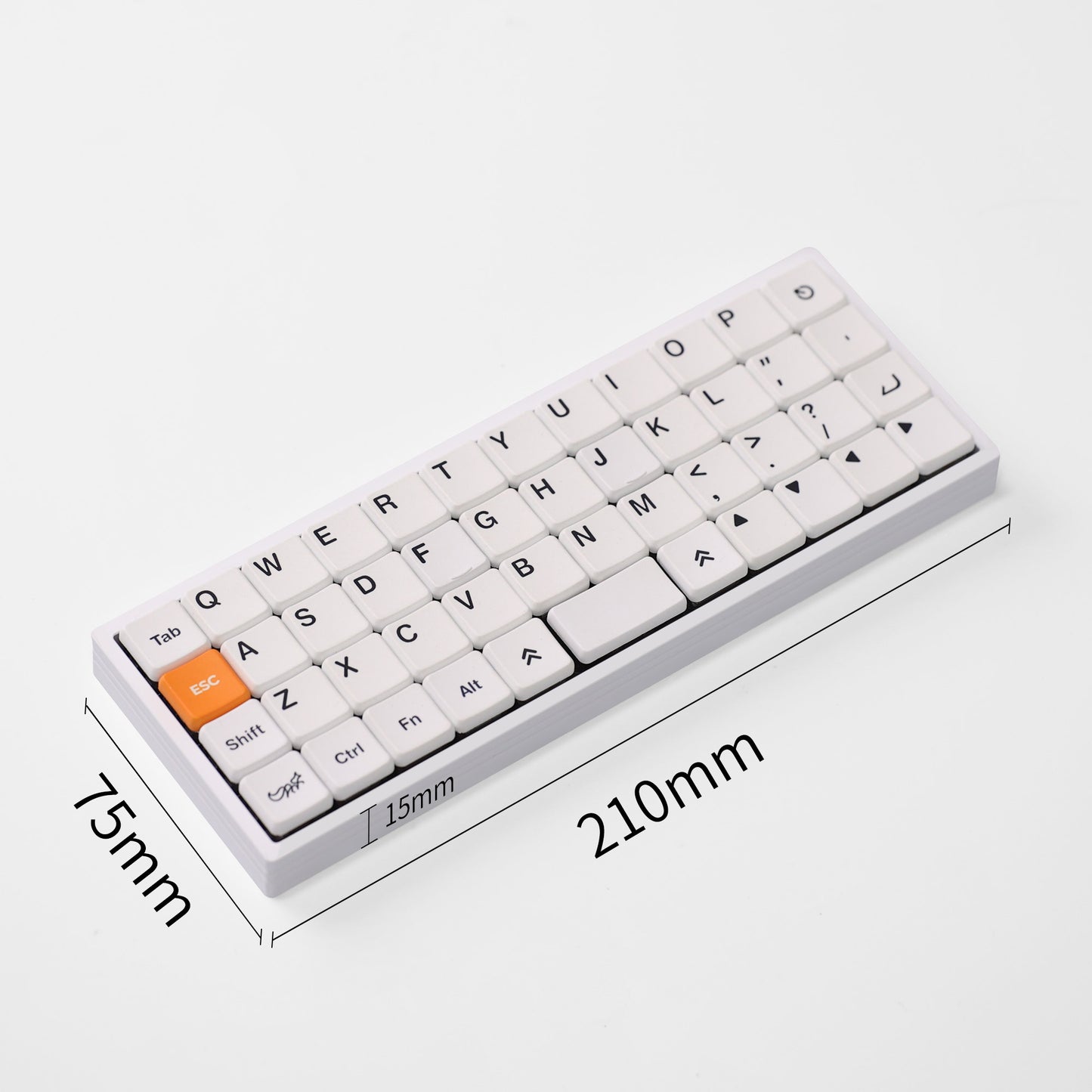

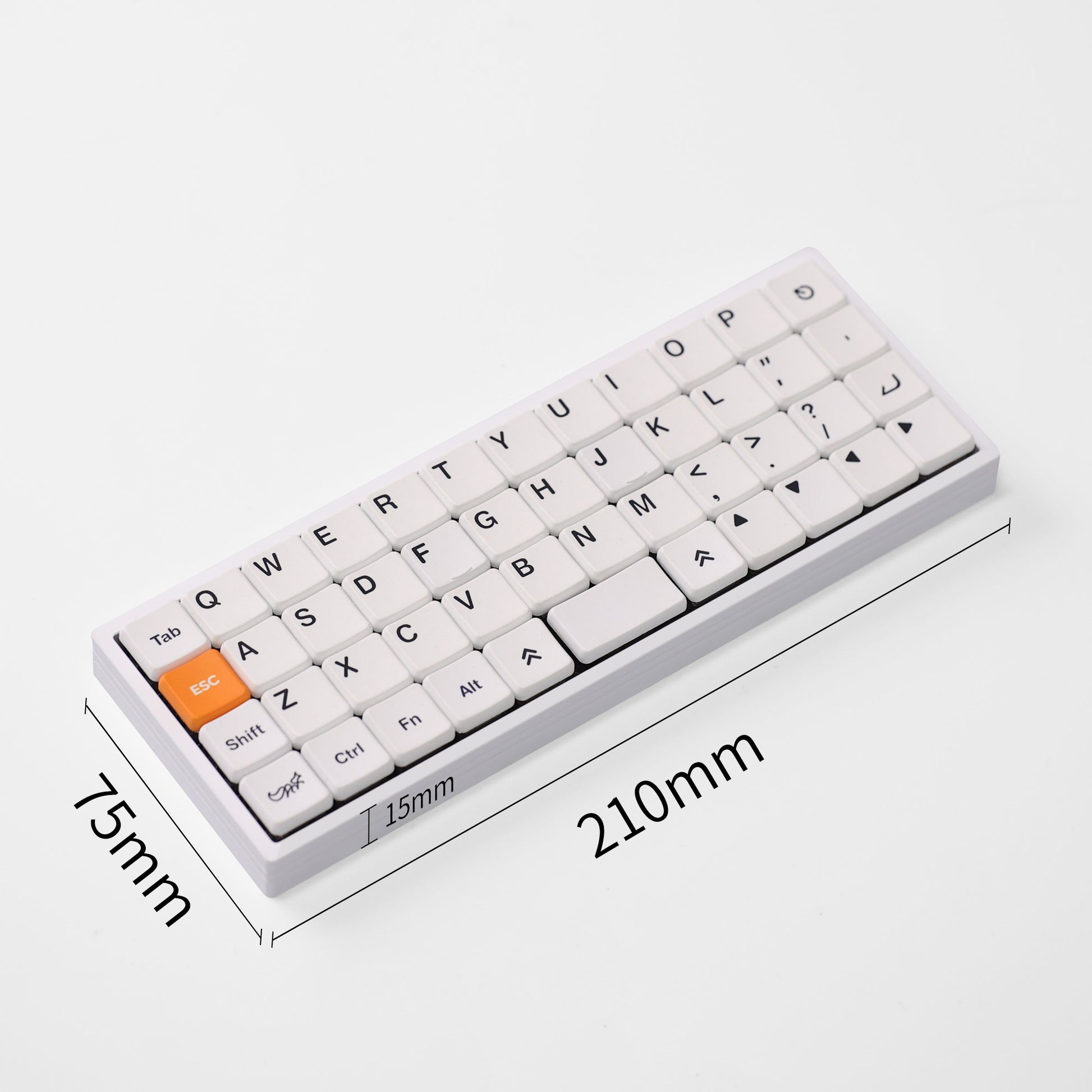

Dimension	2127615mm

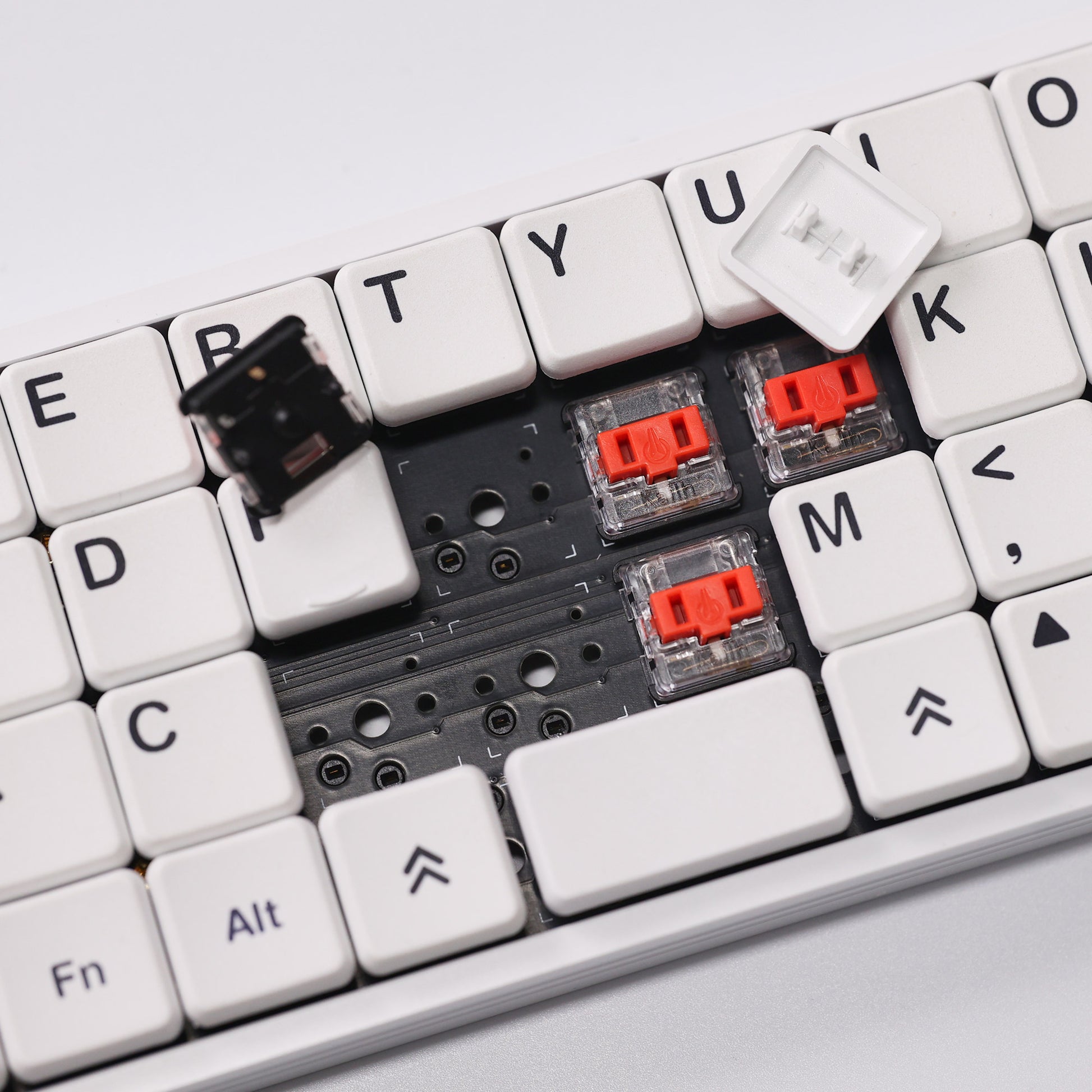

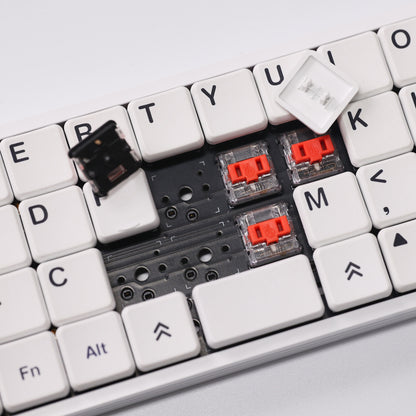

PCB	Hotswap Sockets for Choc v1 (PG1350 series)
Connection	USB-C Only
QMK Compatibility	YES, QMK compatible Geonix48 Via supports VIA
Spacing	CFX Spacing, ONLY compatible with CFX keycaps

Welcome to the Discord discussion!

Good keyboard so far

The keyboard is excellent. The column-stacked layout feels comfortable to my hand. However, I don't understand why the factory firmware wasn't compatible with VIA. I also wish they'd mention somewhere that pressing the top left key (TAB) while connecting will enter update mode.

Resources for the firmware

The keyboard itself is awesome. I had some issues trying to figure out how to get vial to work. I finally found the Youtube URL linked below and was able to get everything to work flawlessly. The link on this page to the git hub works, just download the vial hex for the minipeg48 because it's the same layout and will work fine. Also, download QMK toolbox. You will need to unscrew the board from the case to get to the reset button underneath. Other than that, the video linked below will show you how to do everything else. Awesome little keyboard that can be key mapped however you want it using vial once you follow all the steps.

Best keyboard I've ever used.

It's excellent.

私の要求を満たしてくれるキーボード

キーピッチ 16mm、オーソリニア配列、ロープロファイル、はんだ付け不要。
これらの条件を満たす唯一無二のキーボードだと思います。
そのうえ、かわいい。
茶軸だとキーリリース時に筐体と反響する金属音がありました。
Ambients Silent Choc Switches 20g Linear - Nocturnal に付け替えたら
反響音はなくなり打鍵感も好みのものになりました。

Very cool keyboard

I love geonix48. Both design and material is very good as well as minipeg48.
If I were to suggest improvements, it would be the lack of support at the four corners of the PCB, which causes the PCB to flex when switches are mounted or pressed, and the fact that the USB-C port is slightly recessed despite the thick case, making it difficult for a magnetic USB-C connector to fully plug in.
